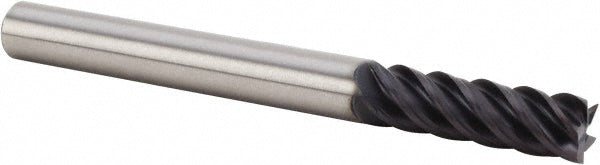

3/4" 5-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 5059742

Kennametal

3/4" 5-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 5059742

MFR# 5059742Series HARVI UGDE

$654.94List $825.37 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 5059742 is a 3/4 5-flute Solid Carbide (KC643M) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 2-1/4 length of cut, 5 overall length. Series HARVI UGDE.

Specifications

CentercuttingNo
ChipbreakerNo; No; No; No; No; No; No; No; No; No; No; No; No; No; No; No
Coating finishAlTiN
Coolant throughNo; No; No; No; No; No; No; No; No; No; No; No; No; No; No; No
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angle43
Length of cut in2-1/4
Length typeRegular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular; Regular
Material gradeKC643M
Mill diameter in3/4
Number of flutes5
Overall length in5
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material; Steel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material; Steel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material; Steel; Stainless Steel; Cast Iron
Shank diameter in3/4
Shank typeStraight
Single or double endSingle; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single; Single
Variable helixNo
Variable indexNo
