Kennametal

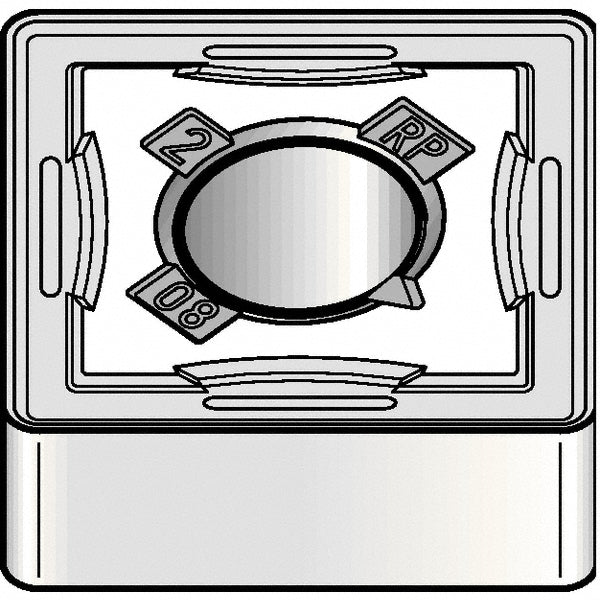

SNMG120408RP Carbide Insert, Grade KCU10, TiAlN - Kennametal 5062108
MFR# 5062108ISO/ANSI# SNMG432RPSeries KENLOC
$23.52List $28.71
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 5062108 is a SNMG120408RP carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerRP
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle90
Industry standard numberSNMG432RP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code432
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120408RP
Length range0.5000 - 0.6000
Manufacturers catalog number5062108
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2500
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle5
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
