Kennametal

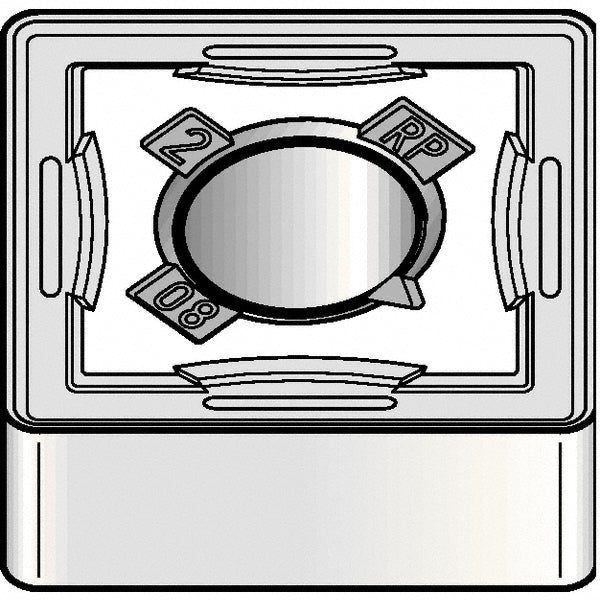

SNMG190612RP Carbide Insert, Grade KCU10, TiAlN - Kennametal 5062117
MFR# 5062117ISO/ANSI# SNMG190612Series KENLOC
$45.06List $55.01
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeS - Square
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 5062117 is a SNMG190612RP carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeSNMG643
Ansi size code643
Chip breakerRP
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.3125
Included angle90
Industry standard numberSNMG643RP
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialCarbide
Insert shapeS - Square
Insert size code643
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG190612RP
Iso insert codeSNMG190612
Iso size code190612
Length range0.7000 - 10.0000
Manufacturers catalog number5062117
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2500
Maximum depth of cut frac in1/4
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle5
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
