Kennametal

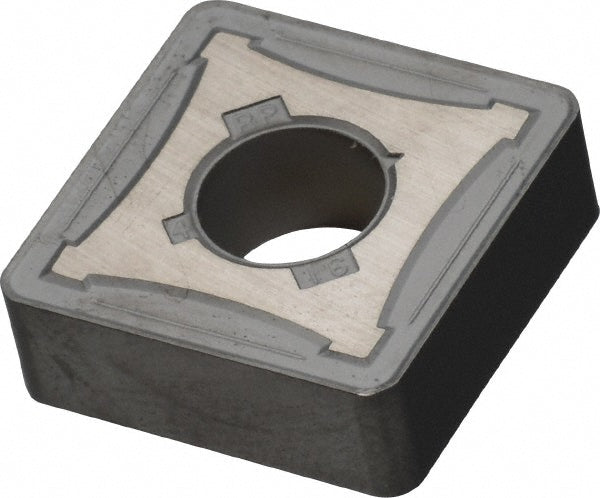

SNMG190616RP Carbide Insert, Grade KCU10, TiAlN - Kennametal 5062120
MFR# 5062120ISO/ANSI# SNMG644RPSeries KENLOC
$52.08List $62.47
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeSquare
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 5062120 is a SNMG190616RP carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Chip breakerRP
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.3125
Included angle90
Industry standard numberSNMG644RP
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in3/4
Insert materialCarbide
Insert shapeSquare
Insert size code644
Insert styleSNMG
Insert thickness in1/4
Iso codeSNMG190616RP
Length range0.7000 - 10.0000
Manufacturers catalog number5062120
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2500
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle5
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
