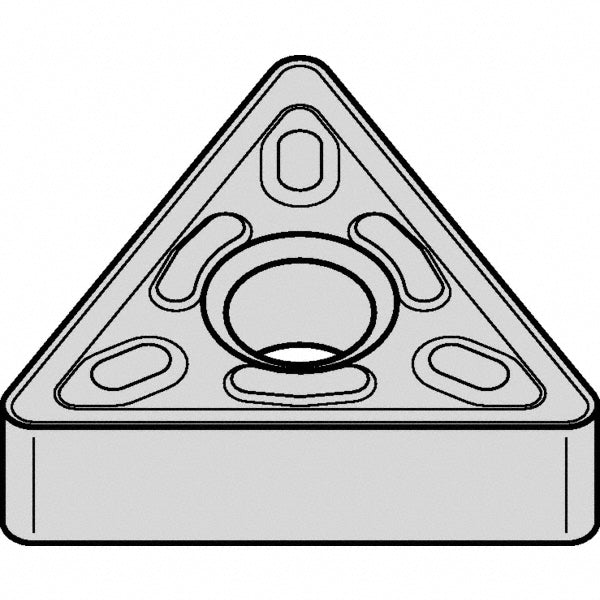

TNMG220404P Carbide Insert, Grade KCU10, TiAlN - Kennametal 5062139

Kennametal

TNMG220404P Carbide Insert, Grade KCU10, TiAlN - Kennametal 5062139

MFR# 5062139ISO/ANSI# TNMG220404Series KENLOC

$32.37List $38.83 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 5062139 is a TNMG220404P carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeTNMG431
Ansi size code431
Chip breakerCommon
Chip breaker operationMedium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.2031
Included angle60
Industry standard numberTNMG431P
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8661
Insert materialCarbide
Insert shapeT - Triangle
Insert size code431
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG220404P
Iso insert codeTNMG220404
Iso size code220404
Length range0.7000 - 10.0000
Manufacturers catalog number5062139
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.2000
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.8661
Wiper edgeNo
