Kennametal

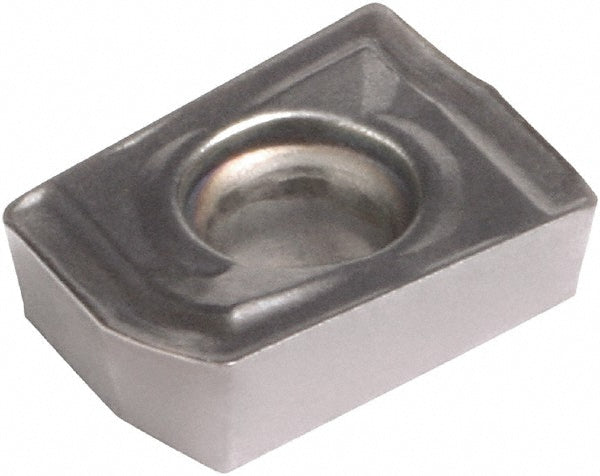

0.2362" IC Carbide Insert, Grade KCU40, TiN - Kennametal 5065554
MFR# 5065554
$26.04List $31.23
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU40
MaterialCarbide
CoatingTiN
Description
The Kennametal 5065554 is a carbide indexable insert, grade KCU40, TiN coated.
Specifications
ChipbreakerGD
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.0906in
Inscribed circle0.2362
Insert handNeutral
Insert materialCarbide
Insert size020204
Insert styleDFR
Length0.2803
Manufacturer gradeKCU40
Thickness0.1098
Width0.1929
