Kennametal
0.3150" IC Carbide Insert, Grade KCU40, TiN - Kennametal 5066193
MFR# 5066193
$24.31List $29.67
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU40
MaterialCarbide
CoatingTiN
Description

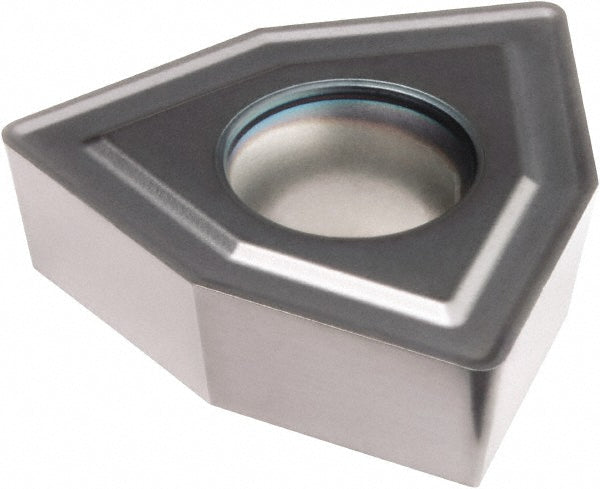

The Kennametal 5066193 is a carbide indexable insert, grade KCU40, TiN coated.
Specifications
ChipbreakerHP
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1340in
Included angle degree84
Inscribed circle0.3150
Insert handNeutral
Insert materialCarbide
Insert size05T308
Insert styleDFT
Length0.2083
Manufacturer gradeKCU40
Relief angle9
ShapeTrigon
Thickness0.1476
