Kennametal
0.3937" IC Carbide Insert, Grade KCU40, TiN - Kennametal 5066198
MFR# 5066198
$32.48List $38.95
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU40
MaterialCarbide
CoatingTiN
Description

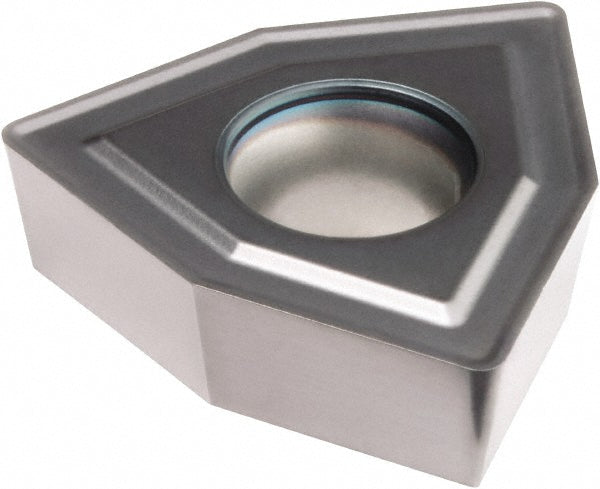

The Kennametal 5066198 is a carbide indexable insert, grade KCU40, TiN coated.
Specifications
ChipbreakerHP
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732in
Included angle degree84
Inscribed circle0.3937
Insert handNeutral
Insert materialCarbide
Insert size06T308
Insert styleDFT
Length0.2606
Manufacturer gradeKCU40
Relief angle9
ShapeTrigon
Thickness0.1476
