Kennametal

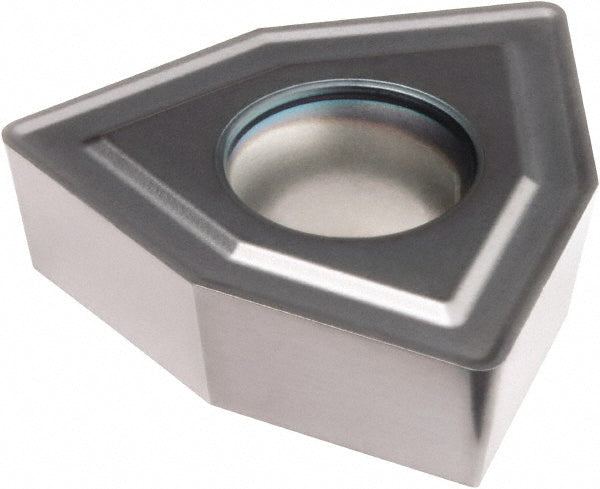

0.4724" IC Carbide Insert, Grade KCU40, TiN - Kennametal 5066199
MFR# 5066199
$40.70List $48.81
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU40
MaterialCarbide
CoatingTiN
Description
The Kennametal 5066199 is a carbide indexable insert, grade KCU40, TiN coated.
Specifications
ChipbreakerHP
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732in
Included angle degree84
Inscribed circle0.4724
Insert handNeutral
Insert materialCarbide
Insert size070408
Insert styleDFT
Length0.3126
Manufacturer gradeKCU40
Relief angle9
ShapeTrigon
Thickness in3/16
