Kennametal
Carbide Insert, Grade KCP10, TiCN - Kennametal 5069433
MFR# 5069433Series A4
$64.88List $77.82
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCP10
MaterialCarbide
CoatingTiCN
Description

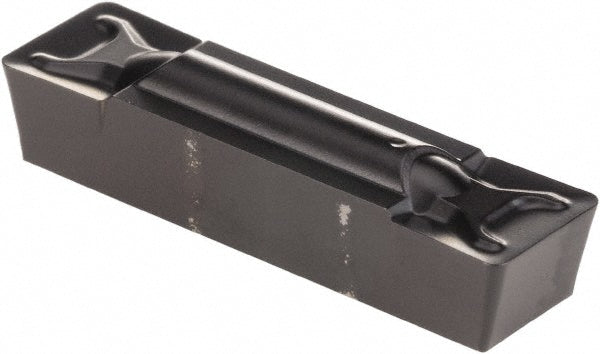

The Kennametal 5069433 is a carbide indexable insert, grade KCP10, TiCN coated.
Specifications
Chip breakerGMN
Coating finishTiCN
Coating processCVD
Corner radius0.0310
Cutting height0.2638
Cutting width0.3169
Full radiusNo
Included angle degree90
Insert handNeutral
Insert materialCarbide
Insert seat size8
Insert size0805
Insert styleG
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.2520
Maximum depth of cut range0.2000 to 0.3000
Measurement typeMetric
Multi use toolYes
Overall length1.181
