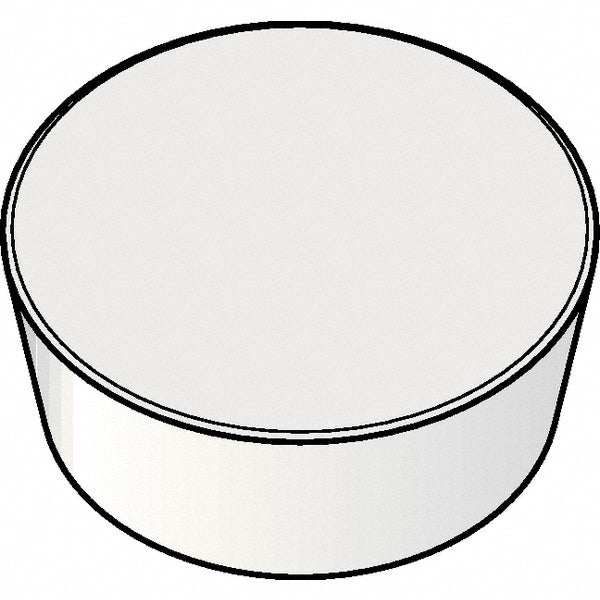

RPGN060200E Ceramic Insert, Grade KYS30 - Kennametal 5090284
MFR# 5090284ISO/ANSI# RPGN060200ECat# RPGN060200ESeries RPGN
$19.88List $23.84
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeRound
GradeKYS30
MaterialCeramic
Description
The Kennametal 5090284 is a RPGN060200E ceramic indexable insert, grade KYS30. Suited for superalloys & titanium.
Specifications
Ansi codeRPG2150E
Chip breakerFlat Top
Coating processUncoated
Cutter series compatibilityKIPR-RP
Cutting edge styleHoned
Included angle degree360
Inscribed circle in1/4
Inscribed circle range0.2500 to 0.3000
Insert handNeutral
Insert holding methodScrew
Insert materialCeramic
Insert shapeRound
Insert size2
Insert size code21.50
Insert styleRPGN
Iso codeRPGN060200E
Length in1/4
Length range0.0000 to 0.3200
Manufacturers catalog numberRPGN060200E
Manufacturer gradeKYS30
Material applicationSuperalloys & Titanium
Maximum depth of cut0.5000
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSuperalloys & Titanium
RakePositive
Rake angle20
Relief angle11.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness in3/32
Thickness range0.0000 to 0.1000
Width in1/4
