Kennametal

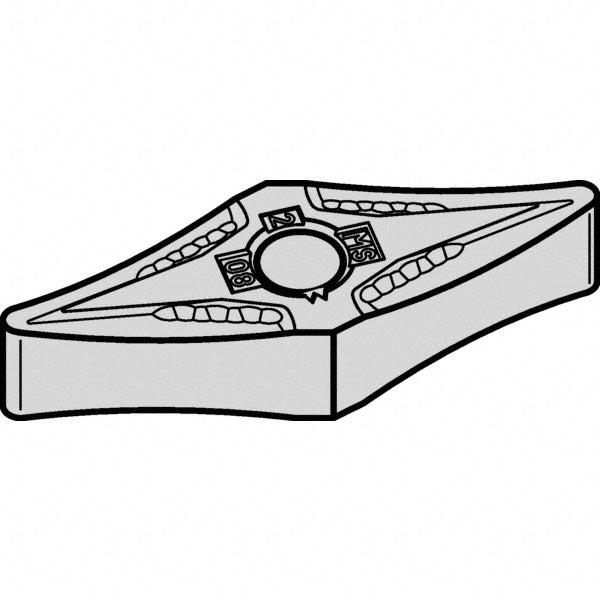

VNMG220404MS Carbide Insert, Grade KCU10, TiAlN - Kennametal 5090855
MFR# 5090855ISO/ANSI# VNMG220404Series KENLOC
$40.57List $49.52
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCU10
MaterialCarbide
CoatingTiAlN
Description
The Kennametal 5090855 is a VNMG220404MS carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi insert codeVNMG431
Ansi size code431
Chip breakerMS
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.2031
Included angle35
Industry standard numberVNMG431MS
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.7434
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code431
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG220404MS
Iso insert codeVNMG220404
Iso size code220404
Length range0.7000 - 10.0000
Manufacturers catalog number5090855
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.5806
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle13
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
