Kennametal

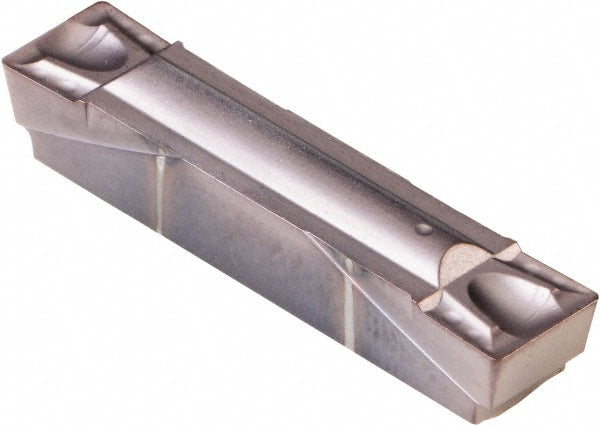

Carbide Insert, Grade KCU25, AlTiN - Kennametal 5109135
MFR# 5109135Series A4
$45.56List $55.61
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 5109135 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.0160
Cutting height0.2240
Cutting width0.2500
Full radiusNo
Included angle degree90
Insert handNeutral
Insert materialCarbide
Insert size250
Insert styleG
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.1750
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolYes
Overall length1.181
RakePositive
