Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 5109136
MFR# 5109136Series A4
$53.79List $64.51
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

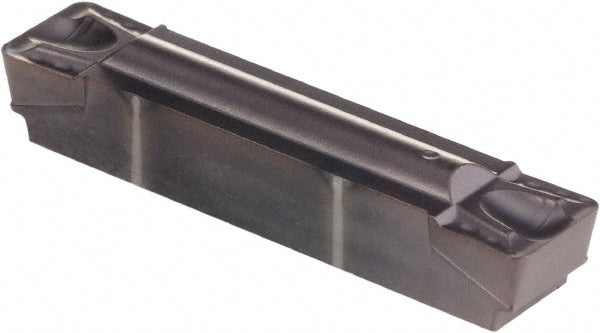

The Kennametal 5109136 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.0310
Cutting height0.2240
Cutting width0.2500
Full radiusNo
Included angle degree90
Insert handNeutral
Insert materialCarbide
Insert size250
Insert styleG
Manufacturer gradeKCU25
Material gradeC2; C6
Maximum depth of cut0.1750
Maximum depth of cut range0.1500 to 0.2000
Measurement typeMetric
Multi use toolYes
Overall length1.181
RakePositive
