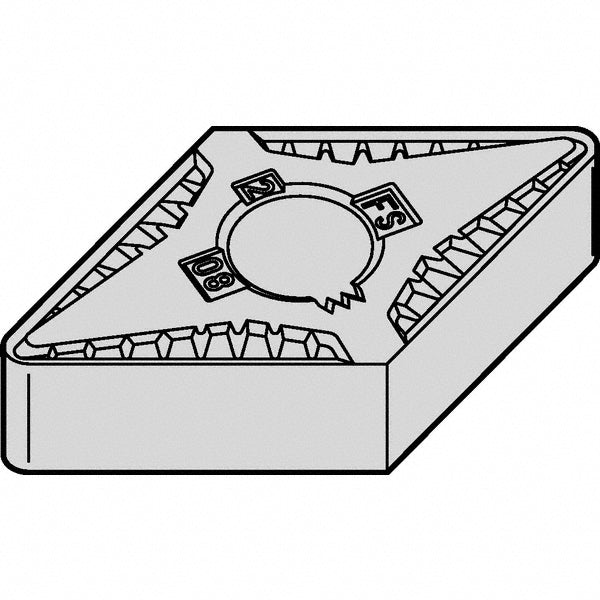

DNGG110408FS Carbide Insert, Grade KCU10, TiAlN - Kennametal 5109292

Kennametal

DNGG110408FS Carbide Insert, Grade KCU10, TiAlN - Kennametal 5109292

MFR# 5109292ISO/ANSI# DNGG110408Series KENLOC

$38.87List $46.62 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCU10
MaterialCarbide
CoatingTiAlN

Description

The Kennametal 5109292 is a DNGG110408FS carbide indexable insert, grade KCU10, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi insert codeDNGG332
Ansi size code332
Chip breakerFS
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.1500
Included angle55
Industry standard numberDNGG332FS
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.9160
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code332
Insert styleDNGG
Insert thickness in3/16
Iso codeDNGG110408FS
Iso insert codeDNGG110408
Iso size code110408
Length range0.7000 - 10.0000
Manufacturers catalog number5109292
Manufacturer gradeKCU10
Material gradeC3; C4
Maximum depth of cut0.0800
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle12
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
