Kennametal
Carbide Insert, Grade KCU25, AlTiN - Kennametal 5118329
MFR# 5118329
$30.60List $37.35
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description

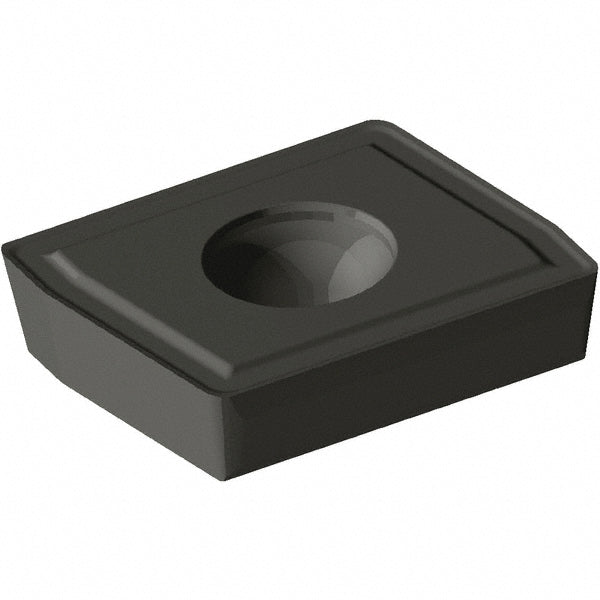

The Kennametal 5118329 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
ChipbreakerHP
Coating finishAlTiN
Coating processPVD
Corner radius0.0320
Hole diameter0.1732in
Included angle degree90
Insert handNeutral
Insert materialCarbide
Insert size06T312
Insert styleDFC
Length0.63
Manufacturer gradeKCU25
Relief angle8
Thickness0.1476
Width0.488
