KCGR110304L08FP Carbide Insert, Grade KCP25, TiCN - Kennametal 5324774

Kennametal

KCGR110304L08FP Carbide Insert, Grade KCP25, TiCN - Kennametal 5324774

MFR# 5324774ISO/ANSI# KCGR110304L08FPSeries Top Notch

$30.91List $37.07 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
GradeKCP25
MaterialCarbide
CoatingTiCN

Description

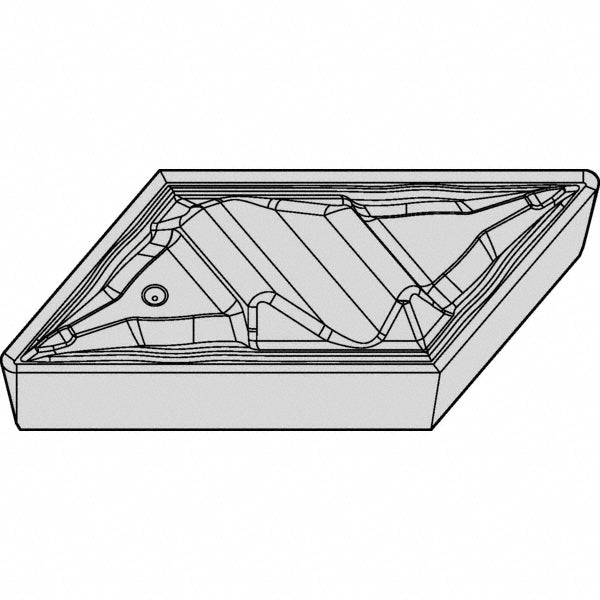

The Kennametal 5324774 is a KCGR110304L08FP carbide indexable insert, grade KCP25, TiCN coated. Suited for steel, cast iron.

Specifications

Coating finishTiCN
Coating processMTCVD
Corner radius0.0156
Included angle55
Inscribed circle0.2490
Insert handLeft Hand
Insert holding methodClamp
Insert length0.4566
Insert materialCarbide
Insert size code51
Insert styleNPGR
Iso codeKCGR110304L08FP
Manufacturer gradeKCP25
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0600
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle15
Relief angle8
StandardsANSI; ISO
Width0.249
