Kennametal

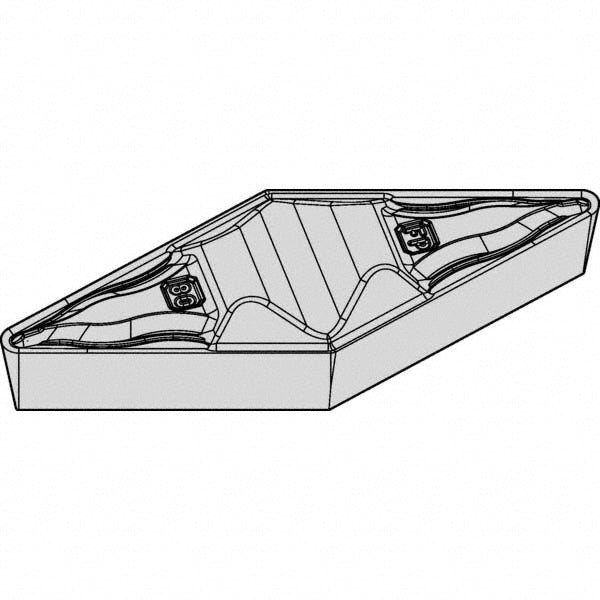

VCGR160408FP Carbide Insert, Grade KCP10, TiCN - Kennametal 5327942
MFR# 5327942ISO/ANSI# VPGR160408Series Top Notch
$38.71List $47.25
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCP10
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5327942 is a VCGR160408FP carbide indexable insert, grade KCP10, TiCN coated. Suited for steel.
Specifications
Ansi insert codeVPGR332
Ansi size code332
Chip breakerFP
Chip breaker operationFinishing
Clearance codeP
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle35
Industry standard numberVPGR332FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length1.3080
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVPGR
Insert thickness in3/16
Iso codeVCGR160408FP
Iso insert codeVPGR160408
Iso size code160408
Length range0.7000 - 10.0000
Manufacturers catalog number5327942
Manufacturer gradeKCP10
Material gradeC3; C7
Maximum depth of cut0.0600
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
RakePositive
Rake angle15
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width in3/8
Wiper edgeNo
