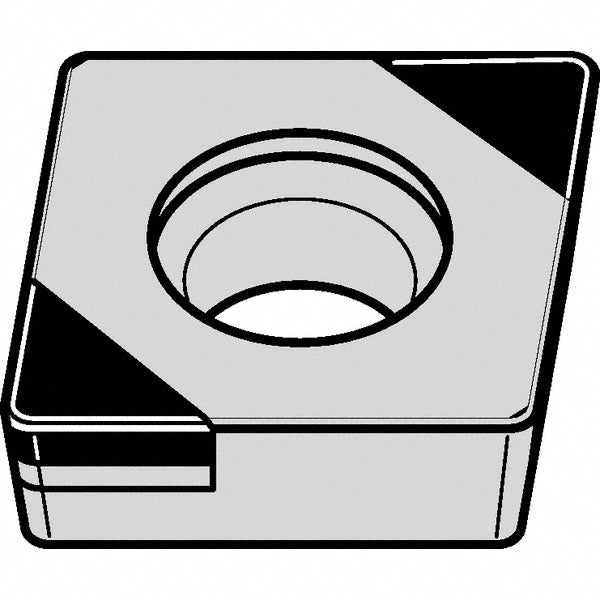

CCGW060204S01225MT PCBN Insert, Grade KBH20, TiN - Kennametal 5330132

Kennametal

CCGW060204S01225MT PCBN Insert, Grade KBH20, TiN - Kennametal 5330132

MFR# 5330132ISO/ANSI# CCGW060204Series Screw-On

$114.25List $137.01 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeKBH20
MaterialPCBN
CoatingTiN

Description

The Kennametal 5330132 is a CCGW060204S01225MT pcbn indexable insert, grade KBH20, TiN coated. Suited for hard material.

Specifications

Ansi insert codeCCGW2151
Ansi size code2151
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.1100
Included angle80
Industry standard numberCCGW2151S0525MT
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialPCBN
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code2151
Insert styleCCGW
Insert thickness in3/32
Iso codeCCGW060204S01225MT
Iso insert codeCCGW060204
Iso size code060204
Length range0.0000 - 0.3000
Manufacturers catalog number5330132
Manufacturer gradeKBH20
Material gradeH15; H25
Maximum depth of cut0.0845
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeG
Width in1/4
Wiper edgeNo
