Kennametal

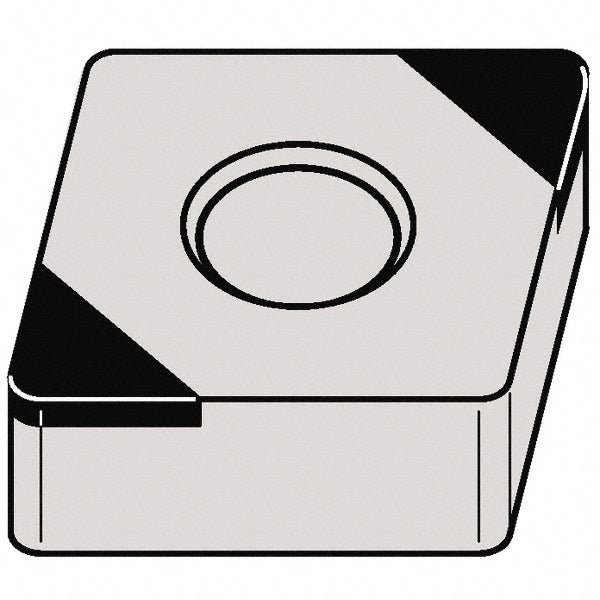

CNGA120408S01225MT PCBN Insert, Grade KBH20, TiN - Kennametal 5330699
MFR# 5330699ISO/ANSI# CNGA120408Series KENLOC
$113.99List $136.69
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKBH20
MaterialPCBN
CoatingTiN
Description
The Kennametal 5330699 is a CNGA120408S01225MT pcbn indexable insert, grade KBH20, TiN coated. Suited for hard material.
Specifications
Ansi insert codeCNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2031
Included angle80
Industry standard numberCNGA432S0525MT
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialPCBN
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA120408S01225MT
Iso insert codeCNGA120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number5330699
Manufacturer gradeKBH20
Material gradeH15; H25
Maximum depth of cut0.1692
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
