Kennametal

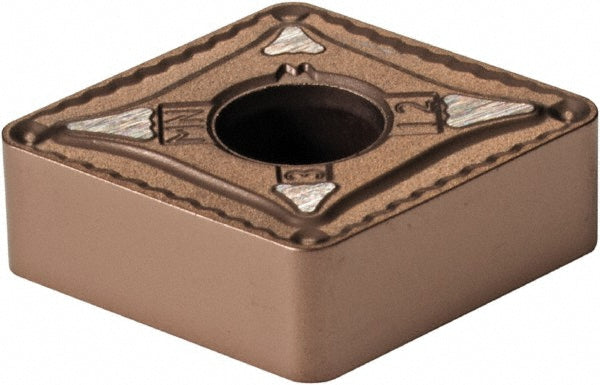

CNMG120412MN Carbide Insert, Grade KCP25B, TiCN - Kennametal 5387667
MFR# 5387667ISO/ANSI# CNMG433MNSeries KENLOC
$21.18List $25.41
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5387667 is a CNMG120412MN carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerMN
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle80
Industry standard numberCNMG433MN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120412MN
Length range0.5000 - 0.6000
Manufacturers catalog number5387667
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.2000
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
