Kennametal

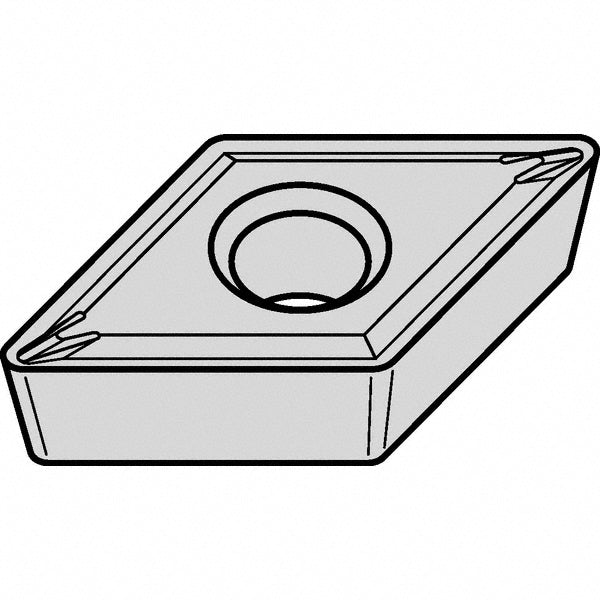

DCMT11T308LF Carbide Insert, Grade KCP25B, TiCN - Kennametal 5387727
MFR# 5387727ISO/ANSI# DCMT3252LFSeries Screw-On
$23.56List $28.76
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5387727 is a DCMT11T308LF carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerLF
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle55degree
Industry standard numberDCMT3252LF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeDiamond 55
Insert size code3252
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T308LF
Length range0.7000 - 10.0000
Manufacturers catalog number5387727
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.0900
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle5
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
