Kennametal

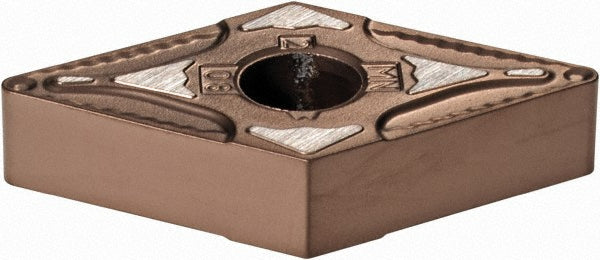

DNMG150408MN Carbide Insert, Grade KCP10B, TiCN - Kennametal 5388111
MFR# 5388111ISO/ANSI# DNMG432MNSeries KENLOC
$33.09List $40.39
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeKCP10B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5388111 is a DNMG150408MN carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerMN
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle55degree
Industry standard numberDNMG432MN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150408MN
Length range0.7000 - 10.0000
Manufacturers catalog number5388111
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.2000
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
