Kennametal

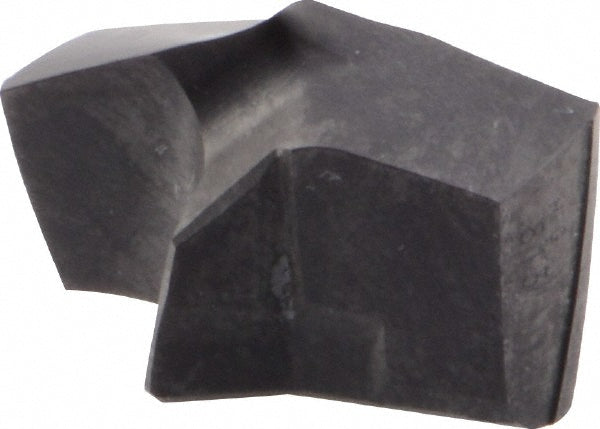

Carbide Insert, Grade KCPM45, TiAlN - Kennametal 5397484
MFR# 5397484Series KSEM
$224.23List $273.69
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKCPM45
CoatingTiAlN
Description
The Kennametal 5397484 is a carbide indexable insert, grade KCPM45, TiAlN coated. Suited for steel, stainless steel.
Specifications
ApplicationsDrilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in13/16
DrillingStackedPlates
Drill point angle140
Flute length (mm)10.00
Flute typeHelical
Functional length0.4063
Height (mm)14.00
Included angle degree140
Insert geometryHPG
Insert holding methodClamp
Insert seat size3
Iso numberKSEM0813HPG
Manufacturer gradeKCPM45
Material gradeFine Grain
Number of flutes2
Overall length projection0.5493
Point typeStandard
Primary workpiece materialSteel; Stainless Steel
Spiral typeRegular Spiral
StyleKSEM
ThroughcoolantMQL(MinimumQuantityLubricant):Drilling; Drilling-ThroughCoolant
Tip materialSolid Carbide
Tooldimensions2flute/2margin/coolant
