Kennametal

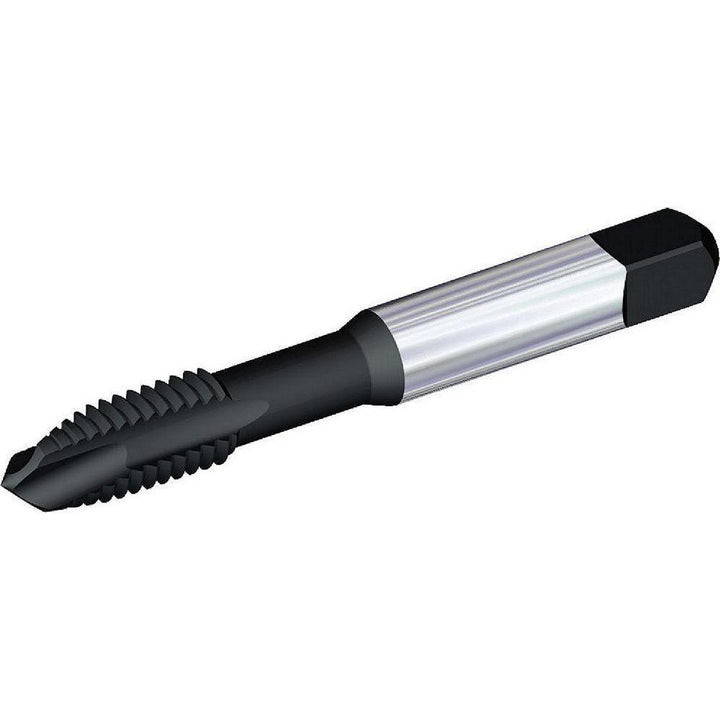

1/4-28 UNF HSS-E Spiral Point Tap, TiN - Kennametal 5416859
MFR# 5416859Series T820
$29.38List $37.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingTiN
Description
The Kennametal 5416859 is a 1/4-28 UNF HSS-E Spiral Point tap with a TiN finish. 3 flutes.
Specifications
Amount oversize0.0030
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishTiN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationStainless Steel; Non-Ferrous Metal
Material gradeKSMN34
Measurement typeFractional Inch
Neck length0.3700
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter0.2550
Square size (mm)4.80
StyleSpiral Point
Threads per inch28
Thread directionRight Hand
Thread length in5/8
Thread limitH3
Thread pitch0.0357
Thread size in1/4-28
Thread standardUNF
