Kennametal
5/8-18 UNF HSS-E Spiral Point Tap, TiCN - Kennametal 5416947
MFR# 5416947Series T820
$120.74List $154.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/8-18
CoatingTiCN
Description

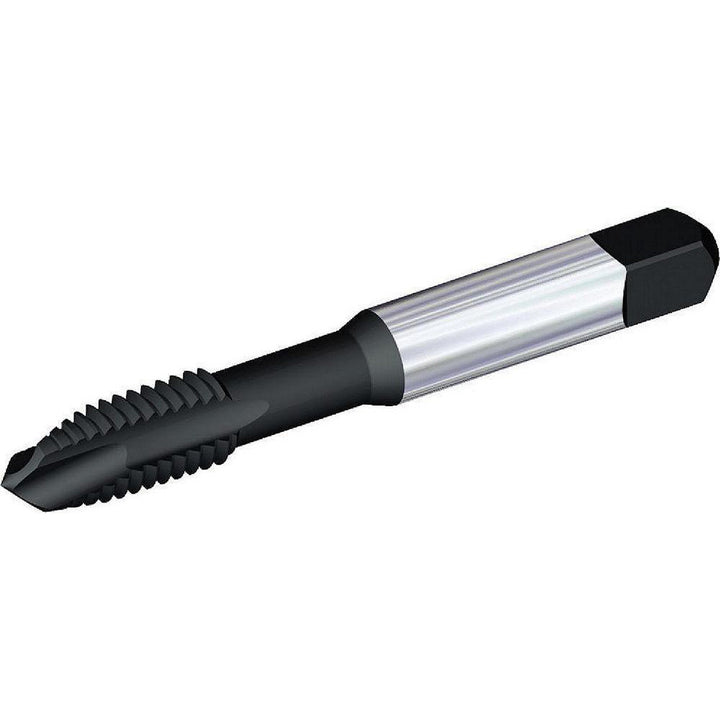

The Kennametal 5416947 is a 5/8-18 UNF HSS-E Spiral Point tap with a TiCN finish. 3 flutes.
Specifications
Amount oversize0.0030
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishTiCN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material gradeKSP32
Measurement typeFractional Inch
Neck length in51/64
Number of flutes3
Overall length in3-13/16
OversizeNo
Shank diameter0.4800
Square size (mm)9.07
StyleSpiral Point
Threads per inch18
Thread directionRight Hand
Thread length in1-3/32
Thread limitH3
Thread pitch0.0556
Thread size in5/8-18
Thread standardUNF
