Kennametal

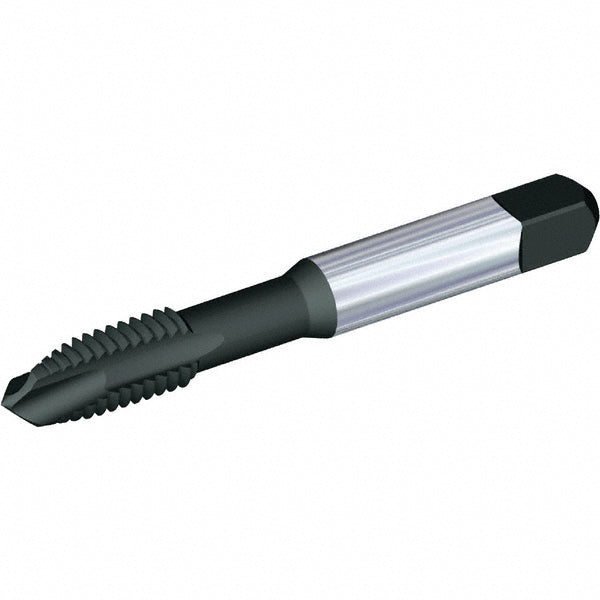

5/8-18 UNF HSS-E Spiral Point Tap, Oxide - Kennametal 5416951
MFR# 5416951Series T820
$92.80List $119.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/8-18
CoatingOxide
Description
The Kennametal 5416951 is a 5/8-18 UNF HSS-E Spiral Point tap with a Oxide finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Coating finishOxide
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeKSP39
Measurement typeFractional Inch
Neck length in51/64
Number of flutes3
Overall length in3-13/16
OversizeNo
Shank diameter0.4800
Square size (mm)9.07
StyleSpiral Point
Threads per inch18
Thread directionRight Hand
Thread length in1-3/32
Thread limitH6
Thread pitch0.0556
Thread size in5/8-18
Thread standardUNF
