Kennametal

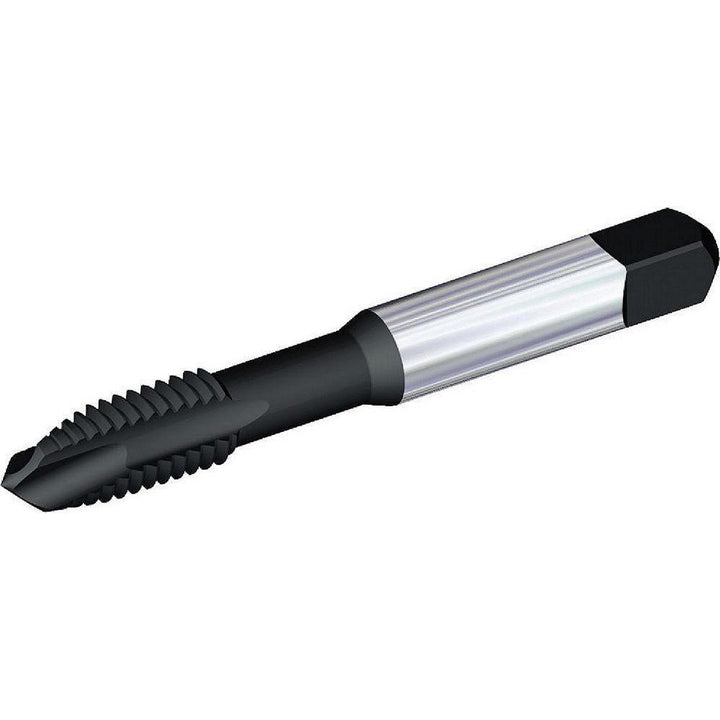

3/4-16 UNF HSS-E Spiral Point Tap, TiN - Kennametal 5416956
MFR# 5416956Series T820
$158.92List $203.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/4-16
CoatingTiN
Description
The Kennametal 5416956 is a 3/4-16 UNF HSS-E Spiral Point tap with a TiN finish. 3 flutes.
Specifications
Amount oversize0.0030
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishTiN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationStainless Steel; Non-Ferrous Metal
Material gradeKSMN34
Measurement typeFractional Inch
Neck length in55/64
Number of flutes3
Overall length in4-1/4
OversizeNo
Shank diameter0.5900
Square size (mm)11.15
StyleSpiral Point
Threads per inch16
Thread directionRight Hand
Thread length in1-7/32
Thread limitH3
Thread pitch0.0625
Thread size in3/4-16
Thread standardUNF
