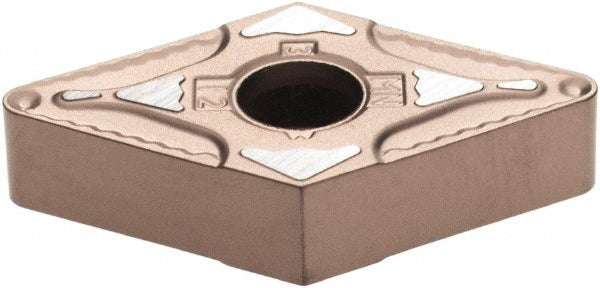

DNMG150412MN Carbide Insert, Grade KCP10B, TiCN - Kennametal 5431070
MFR# 5431070ISO/ANSI# DNMG150412Series KENLOC
$33.09List $40.39
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCP10B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5431070 is a DNMG150412MN carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeDNMG433
Ansi size code433
Chip breakerMN
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.2031
Included angle55
Industry standard numberDNMG433MN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code433
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150412MN
Iso insert codeDNMG150412
Iso size code150412
Length range0.7000 - 10.0000
Manufacturers catalog number5431070
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.2000
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
