Kennametal

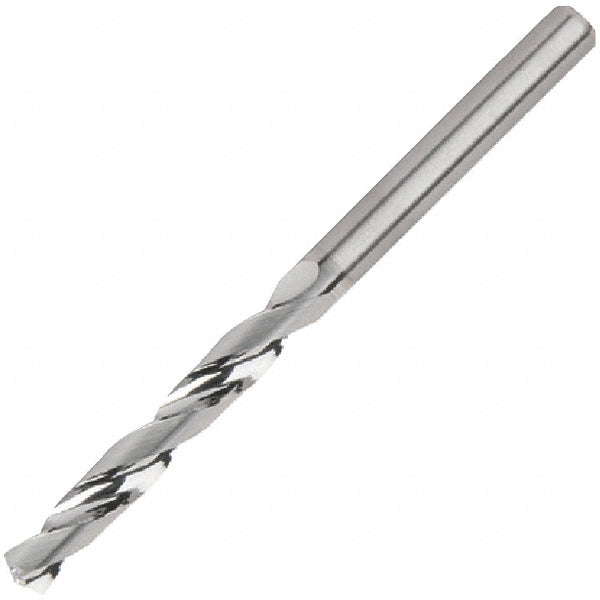

0.1772" Solid Carbide Drill Bit, 135° point - Kennametal 5434712
MFR# 5434712
$101.07List $129.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Kennametal 5434712 is a 0.1772" Solid Carbide drill bit, 135° point.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.0002 to 0.0006 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.1772
Drill bit size range0.1500 - 0.2000
Drill point angle degrees135
Drill point length0.0315
Flute by diameter ratio3xD
Flute length0.9449
Flute typeRegular Spiral
Maximum drilling depth0.6693
Number of flutes2
Overall length2.5984
Point typeStandard
Shank diameter0.2362
Shank length1.4173
Shank typeStraight
Specification designationDIN
Web configurationTapered
Web thinningWeb-Thinned
