Kennametal

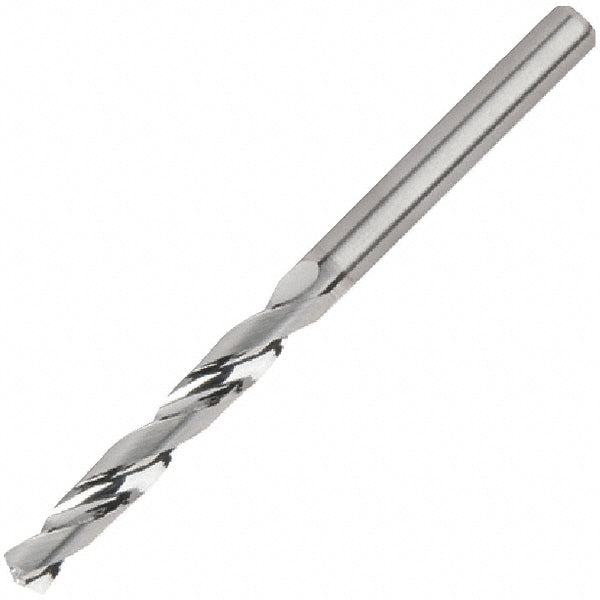

15/64" Solid Carbide Drill Bit, 135° point - Kennametal 5434722
MFR# 5434722
$101.07List $129.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size15/64
Flutes2
Description
The Kennametal 5434722 is a 15/64" Solid Carbide drill bit, 135° point.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.0002 to 0.0006 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in15/64
Drill bit size range0.2000 - 0.2500
Drill point angle degrees135
Drill point length0.0433
Flute by diameter ratio3xD
Flute length1.1024
Flute typeRegular Spiral
Maximum drilling depth0.7874
Number of flutes2
Overall length2.5984
Point typeStandard
Shank diameter0.2362
Shank length1.4173
Shank typeStraight
Specification designationDIN
Web configurationTapered
Web thinningWeb-Thinned
