Kennametal

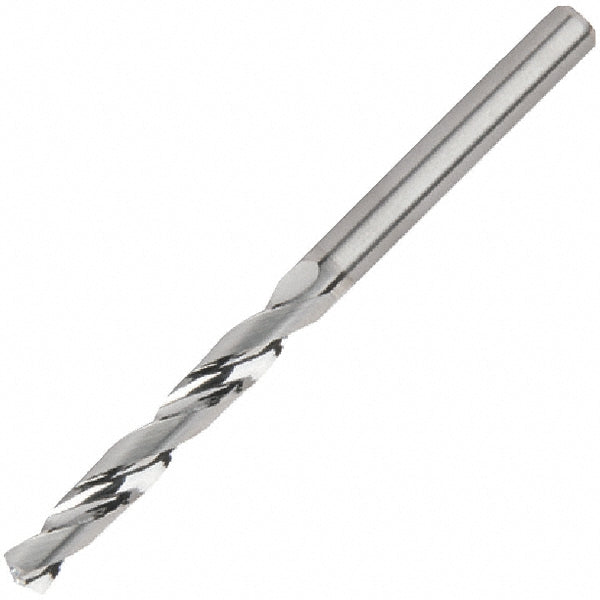

9/32" Solid Carbide Drill Bit, 135° point - Kennametal 5434729
MFR# 5434729
$133.08List $170.68
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/32
Flutes2
Description
The Kennametal 5434729 is a 9/32" Solid Carbide drill bit, 135° point.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.0002 to 0.0008 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size in9/32
Drill bit size range0.2500 - 0.3000
Drill point angle degrees135
Drill point length0.0512
Flute by diameter ratio3xD
Flute length1.6142
Flute typeRegular Spiral
Maximum drilling depth1.1417
Number of flutes2
Overall length3.1102
Point typeStandard
Shank diameter0.3150
Shank length1.4173
Shank typeStraight
Specification designationDIN
Web configurationTapered
Web thinningWeb-Thinned
