Kennametal

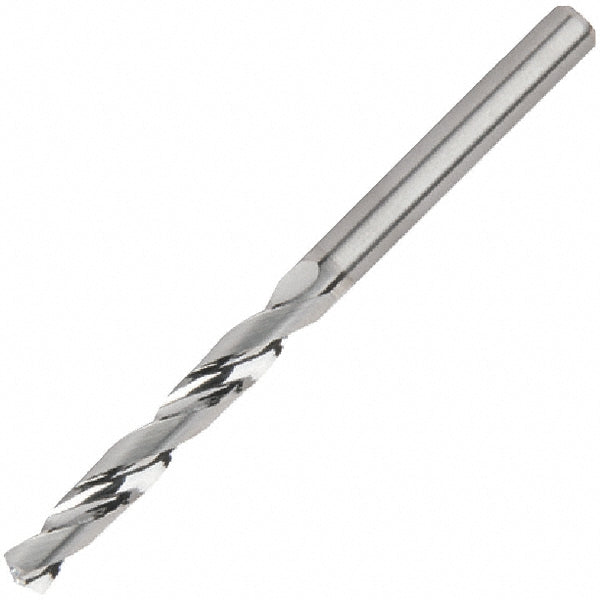

0.4016" Solid Carbide Drill Bit, 135° point - Kennametal 5434744
MFR# 5434744
$271.08List $347.66
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Kennametal 5434744 is a 0.4016" Solid Carbide drill bit, 135° point.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance+0.0003 to +0.0010 in
Drill bit gradeHigh Performance
Drill bit materialSolid Carbide
Drill bit size0.4016
Drill bit size range0.4000 - 0.5000
Drill point angle degrees135
Drill point length0.0748
Flute by diameter ratio3xD
Flute length2.1654
Flute typeRegular Spiral
Maximum drilling depth1.5748
Number of flutes2
Overall length4.0157
Point typeStandard
Shank diameter0.4724
Shank length1.7717
Shank typeStraight
Specification designationDIN
Web configurationTapered
Web thinningWeb-Thinned
