Kennametal

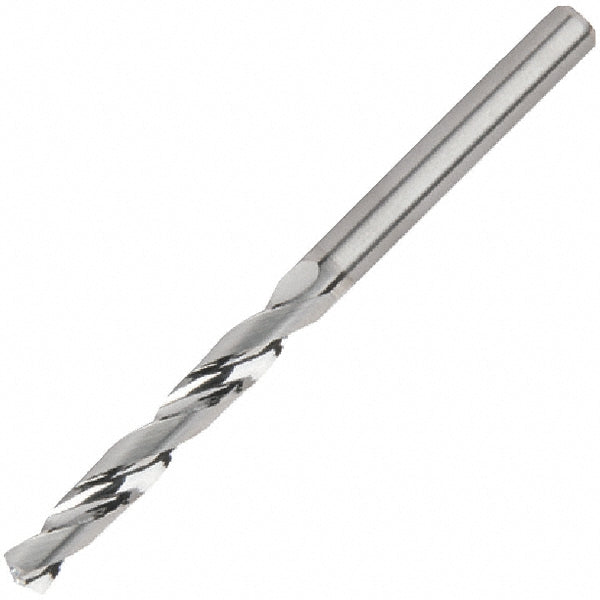

3/8" Solid Carbide Drill Bit, 135° point - Kennametal 5434795
MFR# 5434795
$238.70List $306.14
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size3/8
Flutes2
Description
The Kennametal 5434795 is a 3/8" Solid Carbide drill bit, 135° point. Suited for aluminum & non-ferrous.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerance0.0002 to 0.0008 in
Drill bit gradeSpecialized
Drill bit materialSolid Carbide
Drill bit size in3/8
Drill bit size range0.3500 - 0.4000
Drill point angle degrees135
Drill point length0.0709
Flute by diameter ratio5xD
Flute length2.4016
Flute typeRegular Spiral
Maximum drilling depth1.9291
Number of flutes2
Overall length4.0551
Point typeStandard
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter0.3937
Shank length1.5748
Shank typeStraight
Specification designationDIN
Web configurationTapered
Web thinningWeb-Thinned
