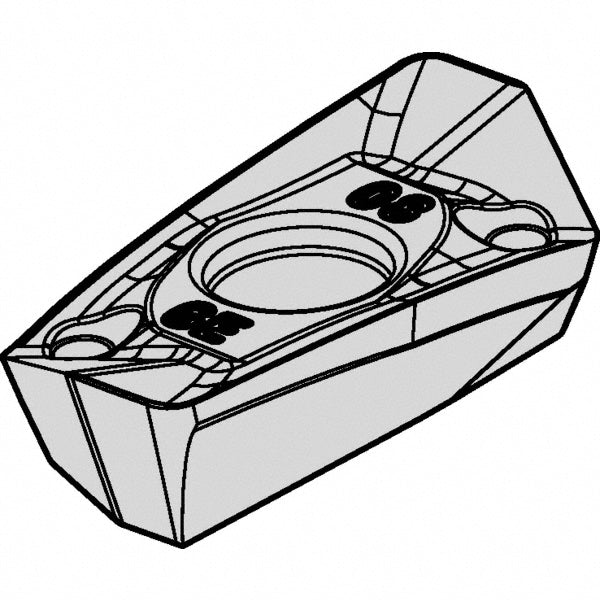

EDPT140408PDERHD2 Solid Carbide Insert, Grade KC522M, AlTiN - Kennametal 5477299
MFR# 5477299ISO/ANSI# EDPT140408PDERHD2Cat# EDPT140408PDERHD2Series EDPT
$29.72List $35.64
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeKC522M
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 5477299 is a EDPT140408PDERHD2 solid carbide indexable insert, grade KC522M, AlTiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Chip breakerHD2
Coating finishAlTiN
Coating processPVD
Corner radius in5/16
Hole diameter0.1339
Included angle degree70
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1408
Insert styleEDPT
Iso codeEDPT140408PDERHD2
Length in11/16
Length range0.6500 to 0.7000
Manufacturers catalog numberEDPT140408PDERHD2
Manufacturer gradeKC522M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Rake angle15
Thickness0.1770
Width in21/64
