Kennametal

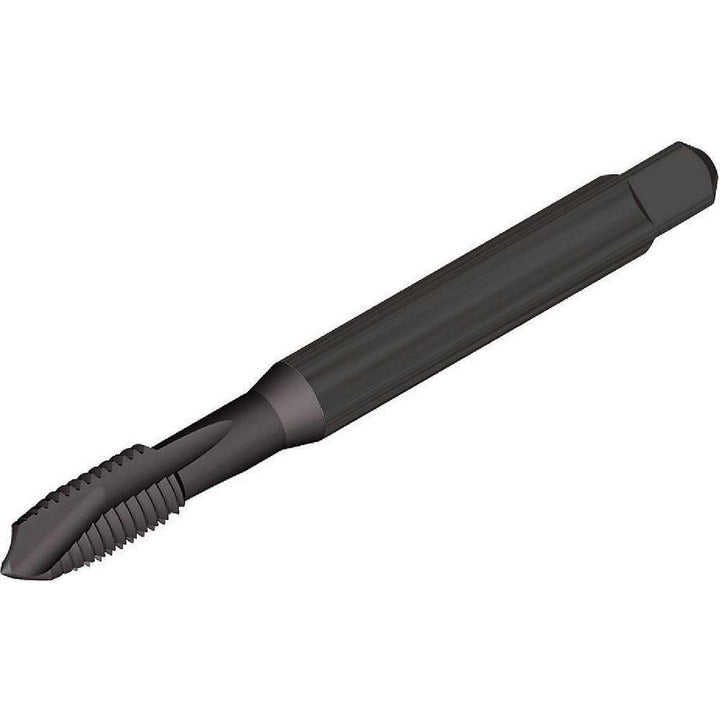

#10-32 UNF HSS-E Spiral Point Tap, Oxide - Kennametal 5479698
MFR# 5479698Series T820
$43.23List $55.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#10-32
CoatingOxide
Description
The Kennametal 5479698 is a #10-32 UNF HSS-E Spiral Point tap with a Oxide finish. 2 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit3B
Coating finishOxide
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron
Material gradeKSP39
Measurement typeDecimal Inch
Neck length0.5100
Number of flutes2
Overall length2.7600
OversizeNo
Shank diameter0.2362
Square size (mm)4.90
StyleSpiral Point
Threads per inch32
Thread directionRight Hand
Thread length in31/64
Thread pitch0.0313
Thread size in#10-32
Thread standardUNF
