Kennametal

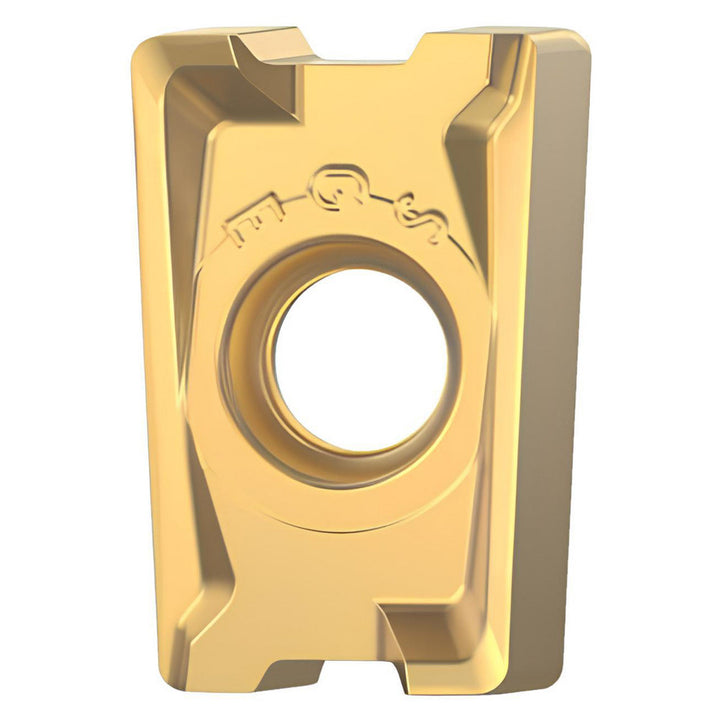

LNGU15T608SRGE Solid Carbide Insert, Grade KC522M, AlTiN - Kennametal 5515890
MFR# 5515890ISO/ANSI# LNGU15T608SRGECat# LNGU15T608SRGESeries LNGU
$47.03List $56.42
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKC522M
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 5515890 is a LNGU15T608SRGE solid carbide indexable insert, grade KC522M, AlTiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeLNGU542SRGE
Chip breakerGE
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 4-15
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size5
Insert size code542
Insert styleLNGU
Iso codeLNGU15T608SRGE
Length0.6700
Length range0.6500 to 0.7000
Manufacturers catalog numberLNGU15T608SRGE
Manufacturer gradeKC522M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2740
Thickness range0.2500 to 0.3500
Width0.3937
