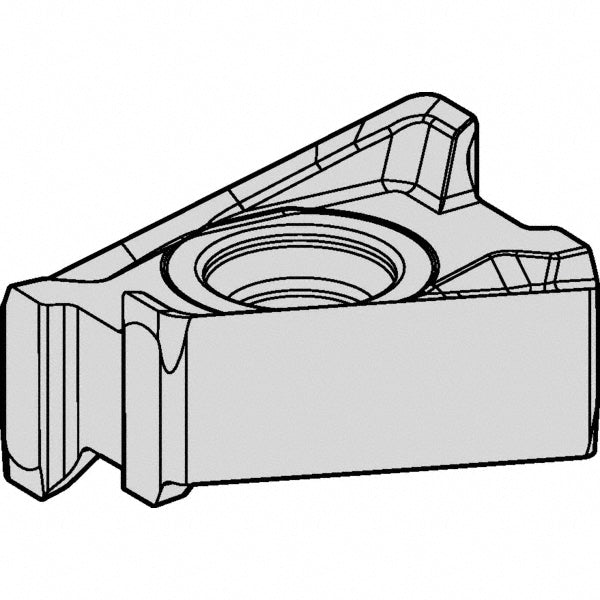

LNGU15T608SRGE Solid Carbide Insert, Grade KCPM20, TiN - Kennametal 5515894

Kennametal

LNGU15T608SRGE Solid Carbide Insert, Grade KCPM20, TiN - Kennametal 5515894

MFR# 5515894ISO/ANSI# LNGU15T608SRGECat# LNGU15T608SRGESeries LNGU

$34.48List $42.08 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeRectangle
GradeKCPM20
MaterialSolid Carbide
CoatingTiN

Description

The Kennametal 5515894 is a LNGU15T608SRGE solid carbide indexable insert, grade KCPM20, TiN coated. Suited for steel, stainless steel, cast iron, hard material.

Specifications

Ansi codeLNGU542SRGE
Chip breakerGE
Coating finishTiN
Coating processMTCVD
Corner radius in1/32
Cutter series compatibilityMill 4-15
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size5
Insert size code542
Insert styleLNGU
Iso codeLNGU15T608SRGE
Length0.6700
Length range0.6500 to 0.7000
Manufacturers catalog numberLNGU15T608SRGE
Manufacturer gradeKCPM20
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2740
Thickness range0.2500 to 0.3500
Width0.3937
