Kennametal

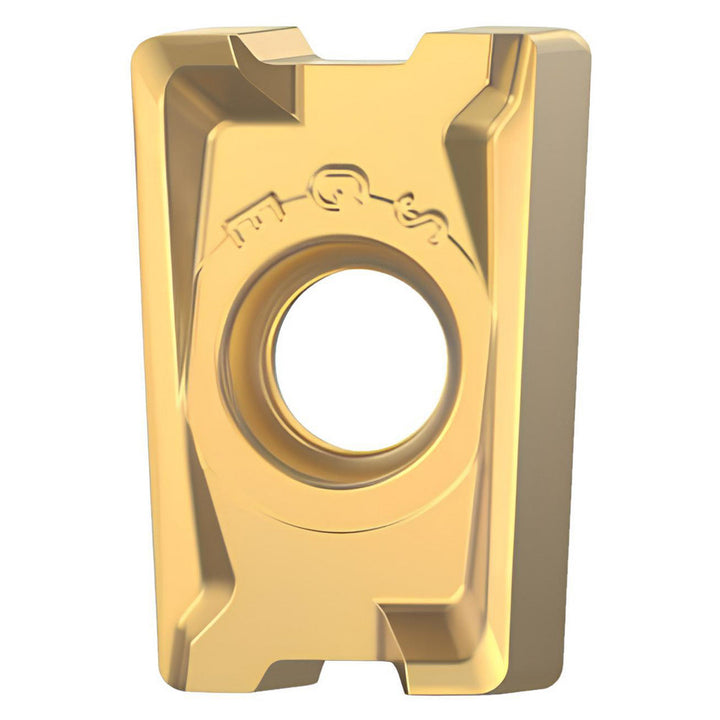

LNGU15T604SRGE Solid Carbide Insert, Grade KC725M, TiAlN - Kennametal 5516075
MFR# 5516075ISO/ANSI# LNGU15T604SRGECat# LNGU15T604SRGESeries LNGU
$47.47List $56.94
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeKC725M
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 5516075 is a LNGU15T604SRGE solid carbide indexable insert, grade KC725M, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeLNGU541SRGE
Chip breakerGE
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutter series compatibilityMill 4-15
Cutting edge styleChamfered; Honed
Included angle degree90
Inscribed circle0.3937
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size5
Insert size code541
Insert styleLNGU
Iso codeLNGU15T604SRGE
Length0.6690
Length range0.6500 to 0.7000
Manufacturers catalog numberLNGU15T604SRGE
Manufacturer gradeKC725M
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeC5; C6; C7
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2740
Thickness range0.2500 to 0.3500
Width0.3937
