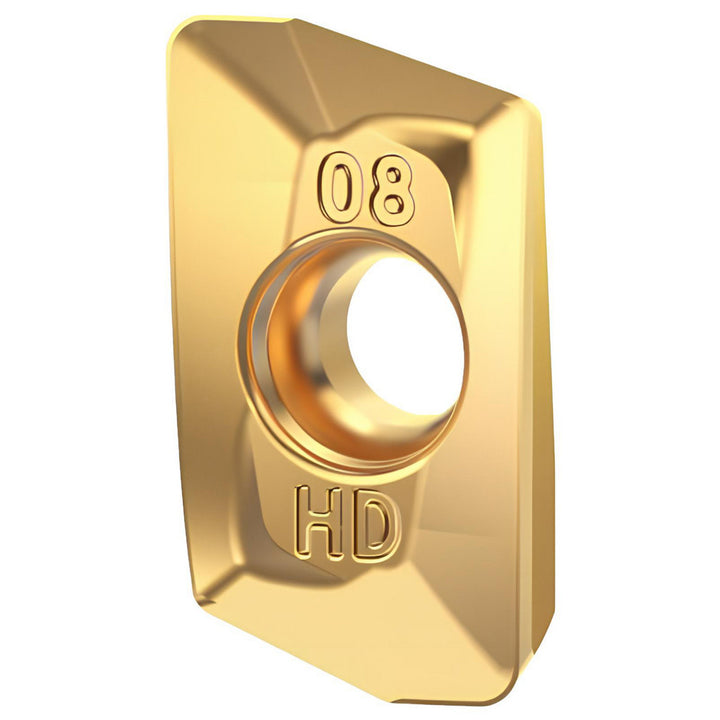

EDPT10T316PDERHD Solid Carbide Insert, Grade KCSM30, TiAlN - Kennametal 5520684

Kennametal

EDPT10T316PDERHD Solid Carbide Insert, Grade KCSM30, TiAlN - Kennametal 5520684

MFR# 5520684ISO/ANSI# EDPT10T316PDERHDCat# EDPT10T316PDERHDSeries EDPT

$22.30List $26.75 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeKCSM30
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 5520684 is a EDPT10T316PDERHD solid carbide indexable insert, grade KCSM30, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium, hard material.

Specifications

Ansi codeEP1016EHD
Chip breakerE.HD
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Cutter series compatibilityMill 1-10
Cutting edge styleHoned
Included angle degree70
Inscribed circle0.2650
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T316
Insert styleEDPT
Iso codeEDPT10T316PDERHD
Length0.4750
Length range0.4500 to 0.5000
Manufacturers catalog numberEDPT10T316PDERHD
Manufacturer gradeKCSM30
Material applicationSteel; Stainless Steel; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium; Hard Material
RakePositive
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1476
Thickness range0.1250 to 0.1500
Width in17/64
