Kennametal

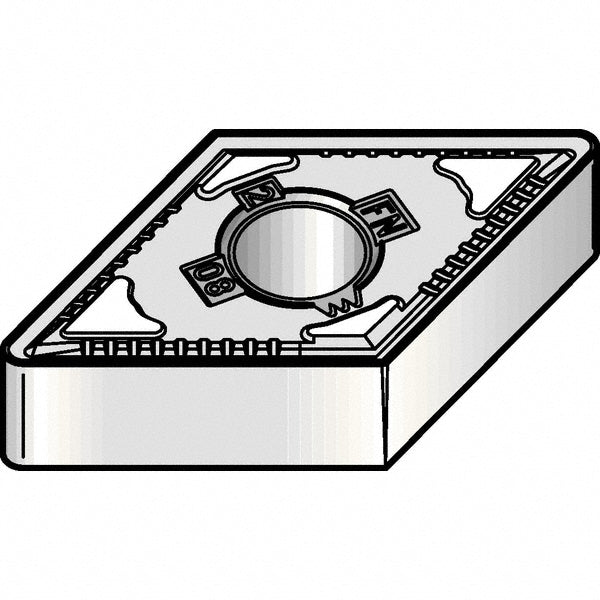

DNMG110408FN Carbide Insert, Grade KCP25B, TiCN - Kennametal 5531897
MFR# 5531897ISO/ANSI# DNMG332FNSeries KENLOC
$22.71List $27.73
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeKCP25B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5531897 is a DNMG110408FN carbide indexable insert, grade KCP25B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerFN
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1500
Included angle55
Industry standard numberDNMG332FN
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.9156
Insert materialCarbide
Insert shapeDiamond
Insert size code332
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG110408FN
Length range0.7000 - 10.0000
Manufacturers catalog number5531897
Manufacturer gradeKCP25B
Material gradeC2; C3; C6; C7
Maximum depth of cut0.1000
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle10
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
