Kennametal

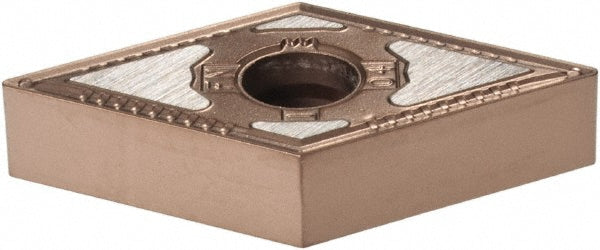

DNMG150404FN Carbide Insert, Grade KCK15B, TiCN - Kennametal 5531898
MFR# 5531898ISO/ANSI# DNMG431FNSeries KENLOC
$39.07List $46.85
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeKCK15B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5531898 is a DNMG150404FN carbide indexable insert, grade KCK15B, TiCN coated. Suited for steel, cast iron.
Specifications
Chip breakerFN
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle55degree
Industry standard numberDNMG431FN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialCarbide
Insert shapeDiamond 55
Insert size code431
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG150404FN
Length range0.7000 - 10.0000
Manufacturers catalog number5531898
Manufacturer gradeKCK15B
Material gradeC3; C4
Maximum depth of cut0.1000
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle10
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
