Kennametal

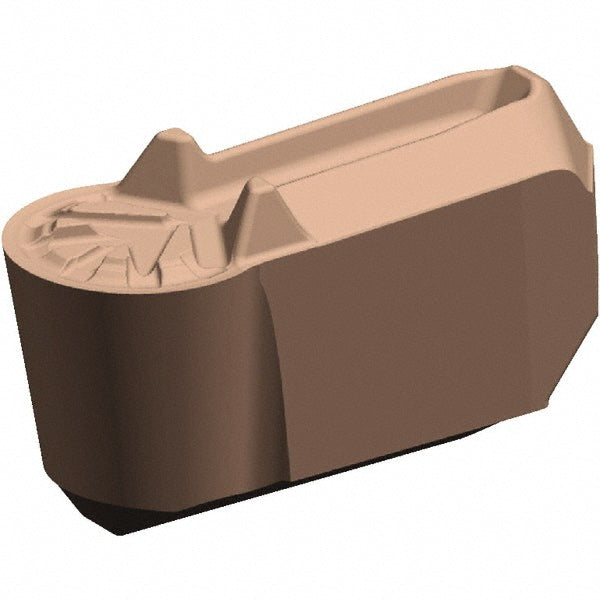

Carbide Insert, Grade KCU25, AlTiN - Kennametal 5533363
MFR# 5533363Series Beyond Evolution
$21.53List $26.28
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 5533363 is a carbide indexable insert, grade KCU25, AlTiN coated.
Specifications
Chip breakerGUP
Coating finishAlTiN
Coating processPVD
Corner radius0.0960
Cutting height0.1740
Cutting width0.1920
Full radiusYes
Insert handNeutral
Insert materialCarbide
Insert seat size4
Insert size4
Insert styleER-U
Insert thickness0.1740
Manufacturer gradeKCU25
Maximum depth of cut0.1180
Maximum depth of cut range0.1000 to 0.1500
Measurement typeMetric
Multi use toolNo
Overall length0.401
Overall width0.192
RakePositive
Rake angle14
