Kennametal

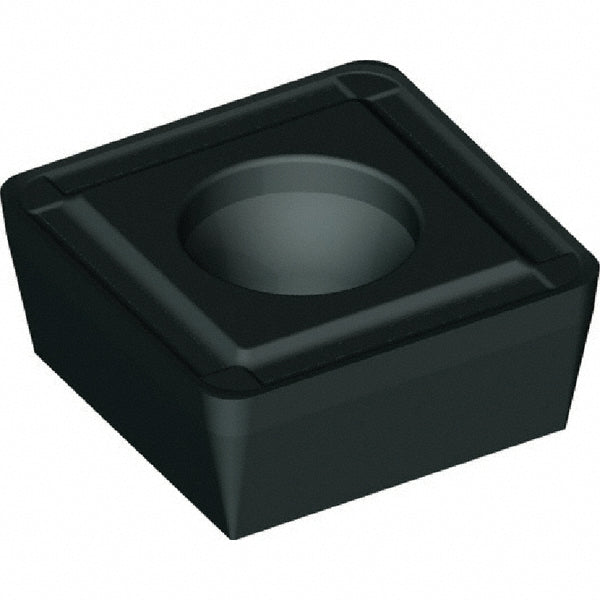

0.3752" IC Solid Carbide Insert, Grade KCU40, TiN - Kennametal 5534234
MFR# 5534234
$29.22List $35.67
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU40
MaterialSolid Carbide
CoatingTiN
Description
The Kennametal 5534234 is a solid carbide indexable insert, grade KCU40, TiN coated.
Specifications
ChipbreakerRHP
Coating finishTiN
Coating processPVD
Corner radius0.0315
Cutting directionRight Hand
Hole diameter0.1417
Inscribed circle0.3752
Insert materialSolid Carbide
Insert size09T308
Insert styleSPPX
Manufacturer gradeKCU40
Relief angle11
ShapeSquare
Thickness0.1563
