Kennametal

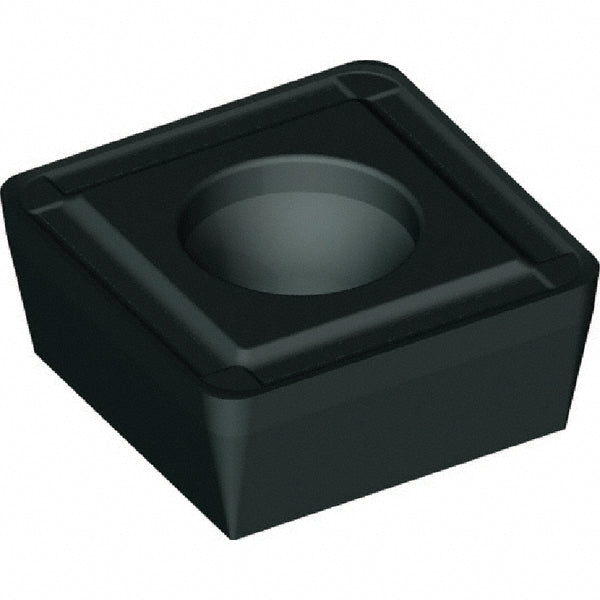

0.5000" IC Solid Carbide Insert, Grade KCU40, TiN/TiAlN - Kennametal 5534237
MFR# 5534237
$30.97List $37.81
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU40
MaterialSolid Carbide
CoatingTiN/TiAlN
Description
The Kennametal 5534237 is a solid carbide indexable insert, grade KCU40, TiN/TiAlN coated.
Specifications
ChipbreakerRHP
Coating finishTiN/TiAlN
Coating processPVD
Corner radius0.0315
Cutting directionRight Hand
Hole diameter0.1811
Inscribed circle0.5000
Insert materialSolid Carbide
Insert size120408
Insert styleSPPX
Manufacturer gradeKCU40
Relief angle11
ShapeSquare
Thickness0.1874
