Kennametal

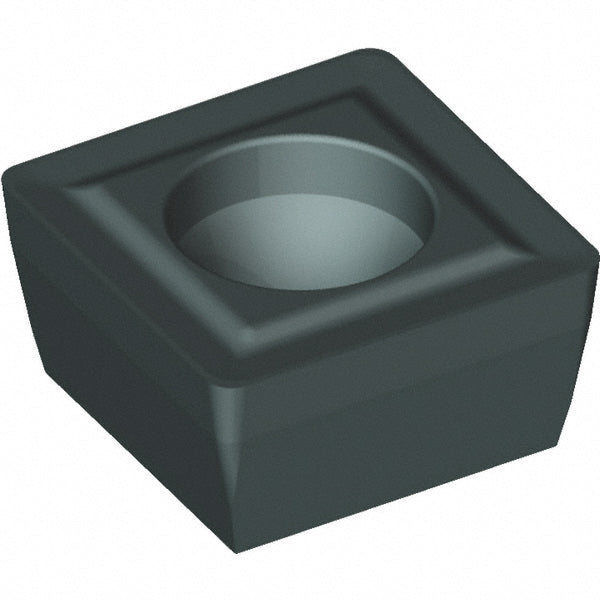

0.5000" IC Solid Carbide Insert, Grade KCU25, TiCN - Kennametal 5534261
MFR# 5534261
$26.48List $32.32
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialSolid Carbide
CoatingTiCN
Description
The Kennametal 5534261 is a solid carbide indexable insert, grade KCU25, TiCN coated.
Specifications
ChipbreakerFP
Coating finishTiCN
Coating processCVD
Corner radius0.0315
Cutting directionRight Hand
Hole diameter0.1811
Inscribed circle0.5000
Insert materialSolid Carbide
Insert size120408
Insert styleSPPX
Manufacturer gradeKCU25
Material gradeFine Grain
Relief angle11
ShapeSquare
Thickness0.1874
