Kennametal

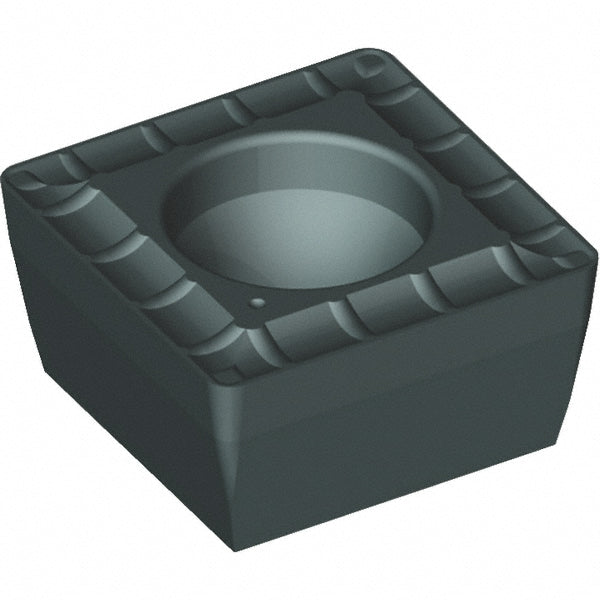

0.6193" IC Carbide Insert, Grade KCU25, TiCN - Kennametal 5534266
MFR# 5534266
$37.48List $44.95
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
GradeKCU25
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5534266 is a carbide indexable insert, grade KCU25, TiCN coated.
Specifications
ChipbreakerMD
Coating finishTiCN
Coating processCVD
Corner radius0.0315
Hole diameter0.2165in
Inscribed circle0.6193
Insert handRight Hand
Insert materialCarbide
Insert size15T508
Insert styleSPPX
Manufacturer gradeKCU25
Material gradeFine Grain
Relief angle11
ShapeSquare
Thickness0.2343
