Kennametal

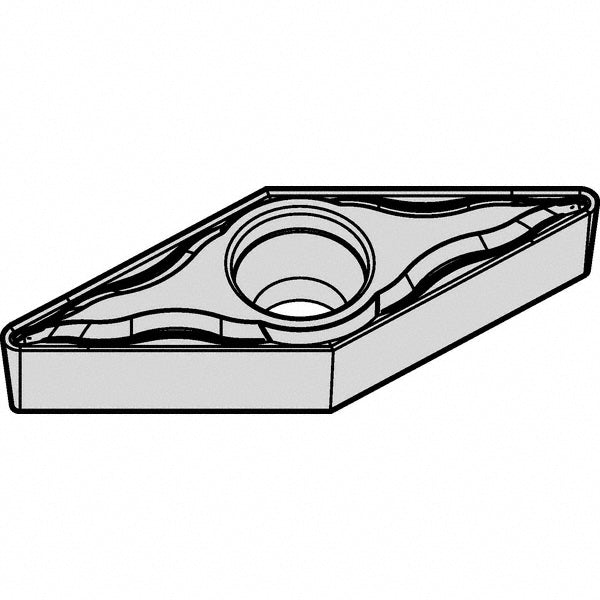

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade KCP10B, TiCN - Kennametal 5538903
MFR# 5538903ISO/ANSI# VBMT160408Series Screw-On
$30.10List $36.11
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCP10B
MaterialCarbide
CoatingTiCN
Description
The Kennametal 5538903 is a carbide indexable insert, grade KCP10B, TiCN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeVBMT332
Ansi size code332
Chip breakerFP
Chip breaker operationFinishing
Clearance codeB
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle35
Industry standard numberVBMT332FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3076
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code332
Insert styleVBMT
Insert thickness in3/16
Iso insert codeVBMT160408
Iso size code160408
Length range0.7000 - 10.0000
Manufacturers catalog number5538903
Manufacturer gradeKCP10B
Material gradeC3; C7
Maximum depth of cut0.4354
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle15
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
