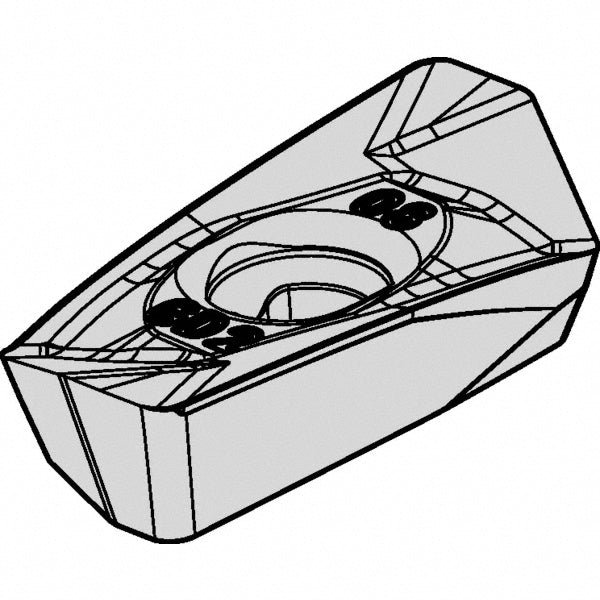

EDPT140408PDSRGD2 Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5545061

Kennametal

EDPT140408PDSRGD2 Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5545061

MFR# 5545061ISO/ANSI# EDPT140408PDSRGD2Cat# EDPT140408PDSRGD2Series EDPT

$32.76List $39.29 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 5 — minimum order 5

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 5545061 is a EDPT140408PDSRGD2 solid carbide indexable insert, grade KCPM40, TiAlN coated.

Specifications

Chip breakerGD2
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1339
Included angle degree70
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size14
Insert size code1408
Insert styleEDPT
Iso codeEDPT140408PDSRGD2
Length in11/16
Length range0.6500 to 0.7000
Manufacturers catalog numberEDPT140408PDSRGD2
Manufacturer gradeKCPM40
Rake angle15
Relief angle15.00
Thickness0.1772
Thickness range0.1750 to 0.1850
Width0.3300
