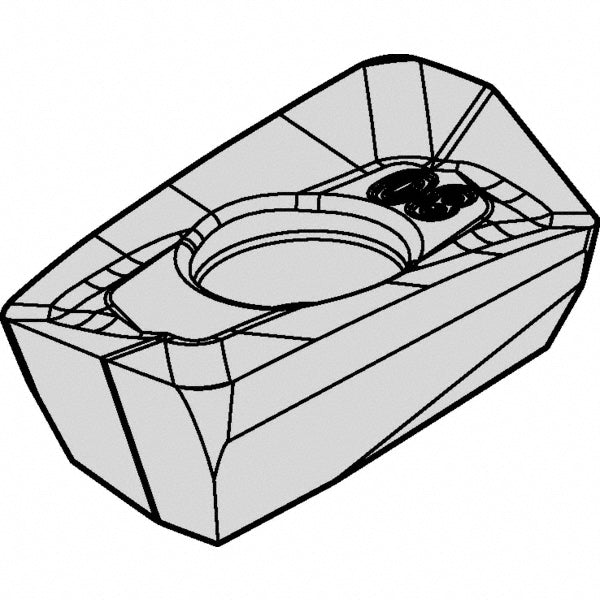

EDCT10T308PDERLD Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5545217

Kennametal

EDCT10T308PDERLD Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 5545217

MFR# 5545217ISO/ANSI# EDCT10T308PDERLDCat# EDCT10T308PDERLDSeries EDCT

$23.78List $29.02 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC17/64
ShapeParallelogram
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN

Description

The Kennametal 5545217 is a EDCT10T308PDERLD solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.

Specifications

Ansi codeEC1008ELD
Chip breakerLD
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityMill 1-10
Cutting edge styleHoned
Hole diameter0.1181
Included angle degree70
Inscribed circle in17/64
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size10
Insert size code10T308
Insert styleEDCT
Iso codeEDCT10T308PDERLD
Length0.4740
Length range0.4500 to 0.5000
Manufacturers catalog numberEDCT10T308PDERLD
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakePositive
Rake angle13
Relief angle15.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.1480
Thickness range0.1250 to 0.1500
Width0.2650
